TWISTTUBE® 2473

Operating temperature up to +150°C (+302°F)

Provides electromagnetic shielding

Self-wrapping design

Stable woven construction

Multiple grounding options available

FUNCTION:

Stacks Image 6847
Stacks Image 9140
Stacks Image 9142
Stacks Image 9143
Open all Close all
  • Product Description

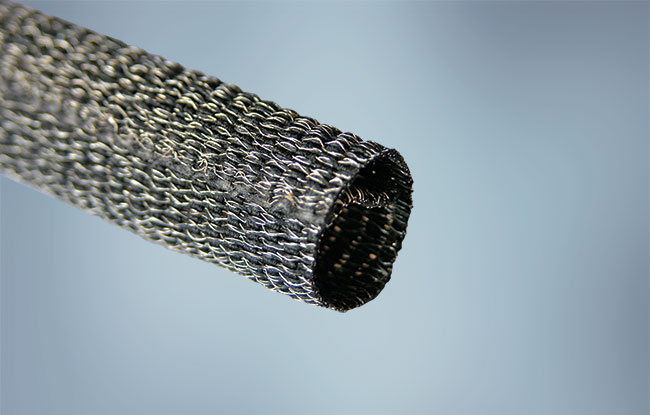

    TwistTube® 2473 is a family of self-wrapping sleeves designed to provide electromagnetic (EM) screening attenuation. Tinned copper wire is combined with polyester yarn to create a wrappable product that offers flexibility and consistent shielding protection. The product features an acrylic/silicone coating to prevent end fray and enable cold cutting to specific application length.

    Engineered to reduce installation time, the wrappable design can accommodate breakouts and be installed over completed assemblies. Unlike foils that may crack while in use, TwistTube 2473 is durable and tear resistant, enabling it to provide long term protection. Additionally the more stable woven construction eliminates performance variances commonly exhibited by traditional braids where installation over varying harness size or rough handling may cause inconsistent performance.

    Special grounding versions available depending upon application.

    TwistTube® 2473 Standard product designed for backshell style grounding.
    TwistTube® 2473 C
    TwistTube 2473 with additional metal in the fill/cross direction for specialty applications.
    TwistTube® 2473D
    TwistTube 2473C construction with the addition of two integrated tinned copper drain wires to be extended and used for grounding. Product can be delivered with drain wires extended and terminations preinstalled to customer specifications.
    TwistTube® 2473 C-S
    TwistTube 2473C construction with mechanically attached custom drain wires.
  • Typical Applications

    • Instrument panel harnesses
    • Engine compartment harnesses
    • Battery cables
    • Interior harnesses

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5
    1
    5
    8
    6
    8
    10
    9
    10
    13
    11
    13
    16
    14
    16
    19
    17
    19
    25
    20
    25
    38
    26
    38

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user.

    A reduced overlap could be acceptable in certain applications allowing for a larger max diameter harness. Please consult your local sales representative for recommendations and guidance.

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2473

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
