REFLECTSHIELD® 1412

Operating temperature -40°C up to +250°C (-40°F up to +482°F)

Excellent protection against radiant heat

Custom designs for for complex components

Quick and easy installation

Fluid and chemical resistant

FUNCTIONS:

Stacks Image 8169
Stacks Image 6847
Open all Close all
  • Product Description

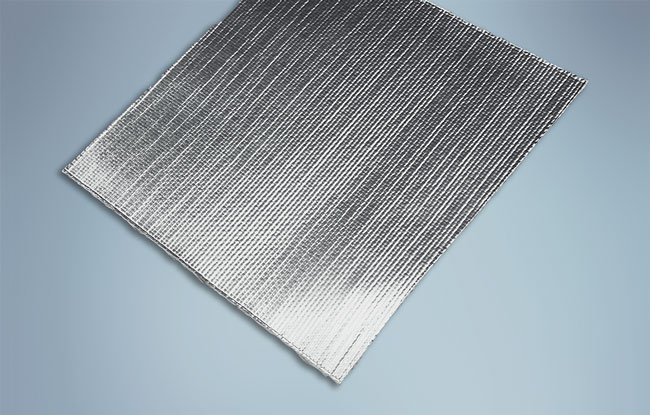

    ReflectShield® 1412 is a woven fiberglass fabric that has an aluminum foil laminated to its outer and inner surfaces. ReflectShield 1412 is designed to provide radiant heat protection for tubes, hoses, wire harnesses and other engine components.

    ReflectShield 1412 can be slit to various widths and lengths or custom die cut to complex geometric shapes. ReflectShield 1412 can be customized to include snaps, holes, and other features to reduce complexity and installation time.
  • Typical Applications

    • Engine Components
    • Tubes, Hoses, and Cables
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Middle Layer: Fiberglass Multifilament

    Inner Layer: Aluminum
  • Product Testing

    Performance Data – ReflectShield® 1412

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
