FLEXWRAP® 2004

Operating temperature up to +125°C (+257°F)

Outstanding abrasion resistance against sharp, metal edges

Self-wrapping design

Accommodates rework and breakouts

FUNCTIONS:

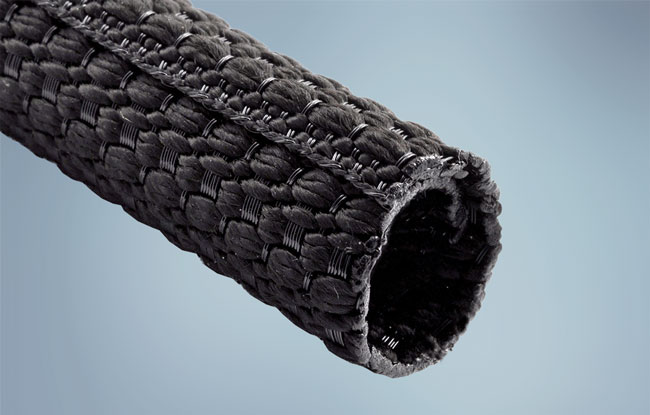

Stacks Image 8083
Open all Close all
  • Product Description
    FlexWrap® 2004 is a self-wrapping sleeve designed to provide protection for wire harnesses and cable assemblies in severe abrasion situations. Manufactured with a combination of polyester and polyamide yarns, its rugged, woven construction provides a high level of protection in even the most severe of environments, including continued exposure to sheet metal edges and sharp bolts. FlexWrap 2004 also provides protection from sharp edges often encountered when harnesses or cables must be routed through the firewall during vehicle assembly.

    FlexWrap 2004’s design allows for quick and easy installation over harnesses and cables and also easily accommodates breakouts. FlexWrap 2004 can be applied over complete assemblies, eliminating the need for disassembly
  • Typical Applications

    • Wire Harnesses
    • Cable Assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Yarn: Nylon 6 (PA6) Multifilament

    Fill Yarn: Polyester (PET) Monofilament
  • Sizes / Availability

    Standard Sizes

    Nominal Diameter (mm)
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    5
    1
    5
    8
    6
    8
    13
    9
    13
    19
    14
    19
    25
    20
    25
    29
    26
    29
  • Product Testing

    Performance Data – FlexWrap® 2004

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +125°C (+257°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Fluid Resistance
    SAE J2192
    Pass
    Flammability
    SAE J369
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
