REFLECTSHIELD® 1485

Operating temperature up to +175°C (+347°F)

Provides superior protection against radiant heat

Attractive appearance

Easy installation

Fray resistant

Available in custom designs

FUNCTIONS:

Stacks Image 6847
Stacks Image 8361
Open all Close all
  • Product Description

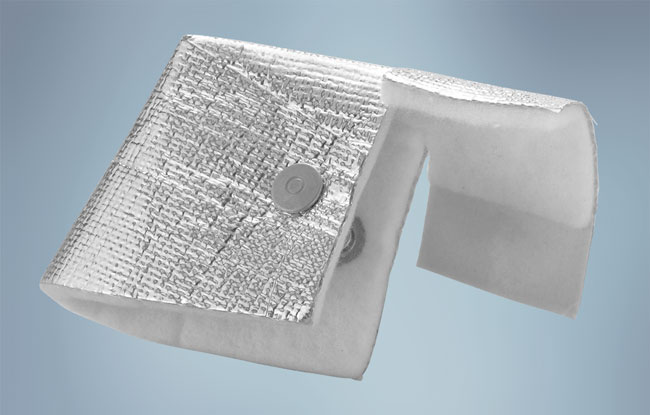

    ReflectShield® 1485 is a non woven fabric that has an aluminum foil laminated to its outer surface.

    ReflectShield 1485 can be slit to widths and lengths or custom die cut in complex geometric shapes.

    To make the installation and the fixation easier, snaps can be added.

    ReflectShield 1485 is designed to provide superior protection from radiant heat for tubes, hoses, wire harnesses, sensors and other engine components.
  • Typical Applications

    • Tubings and hoses
    • Engine compartment parts
    • Sensors
    • Connectors

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Inner Layer: Polyester non-woven

    Outer Layer: Glass / PSA / Aluminum Foil
  • Availability / Storage
    ReflectSleeve 1485 is available in inner diameters ranging from 10mm to 38mm. It is available in aluminum colored only. This product is also available in cut pieces with 51mm (2”) being the minimum length and 150mm (6”) being the maximum.

    Storage
    Please stock the material away from humidity and dust, otherwise, no other precaution requested.

  • Product Testing

    Performance Data – ReflectShield® 1485

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Heat Aging
    7 days at +175°C (+347°F)
    No degradation
    Fluid Resistance
    BH100-003B
    No delamination in standard automotive fluids
    Thermal Endurance
    BH100-503
    No delamination with no degradation
    Cold Soak
    BH100-016
    No visible degradation at -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
