TWISTTUBE® 2440

Operating temperature up to +200°C (+392°F)

High temperature bundling product

Mechanical abrasion protection

Lightweight woven structure

Self-wrapping tubular design

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

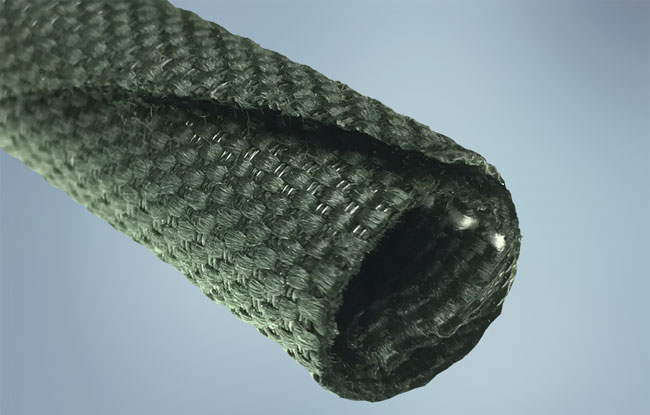

    TwistTube® 2440 is a high temperature, lightweight sleeve designed to provide a combination of thermal and mechanical protection. It incorporates a unique self-wrapping closure that allows for quick and easy installation. It also allows for breakouts and can be installed over completed assemblies. The overwrapping design of the product allows it to maintain a circular profile when flexed.

    TwistTube 2440 is woven with a blend of aramid multifilament and PPS (polyphenylene sulfide) monofilament. The combination of these two fibers allows the TwistTube 2440 product to have a continuous temperature rating of +200°C (+392ºF).
  • Typical Applications

    • Engine compartment harnesses
    • Cables and hoses

  • Datasheet Downloads
  • Sizes / Availability
    TwistTube 2440 is available in a range of sizes and cut to your specification. Color is green or orange. Please contact your sales representative for availability.
  • Installation Guides / Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2440

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +225°C (+200°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
