REFLECTSHIELD® 1805

Operating temperature up to +200°C (+392°F)

Excellent radiant heat protection

Adhesive backed for peel and stick applications

Superior adhesion to low surface energy plastics (such as HDPE, PP) and excellent on PA and metals

Easy installation for complex geometries

Available in custom designs

Fluid and chemical resistant

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectShield® 1805 is a woven fiberglass fabric that has an aluminum foil laminated to its outer surface and a pressure sensitive adhesive on its inner surface. The unique, multipolymer adhesive exhibits high adhesion to low surface energy plastics such as HDPE, polypropylene and gas filled polypropylene. It has been designed to show very good adhesion properties also after heat ageing and fluid projections.

    ReflectShield 1805 provides superior protection from radiant heat for plastic components and areas where a self-adhering, thermal protection system is required. ReflectShield 1805 can also be applied to metal heat shields to increase their thermal performance and slit to custom widths and lengths or die-cut to complex geometric shapes.
  • Typical Applications

    • Fuel Tanks and Coolant Bottles
    • Plastic and Metal Troughs
    • Polypropylene Applications
    • Other Low Surface Energy Plastic Components

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Inner Layer: Special adhesive materials
  • Availability

    Availability

    ReflectShield® 1805 is a customized product and is available in various designs to meet specific application requirements. Color is aluminum(sliver).

    Please contact your sales representative for availability.
  • Product Testing

    Performance Data – ReflectShield® 1805

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    -40°C to +200°C (-40°F to +392°F)
    Heat Aging 240hrs at +225°C (+437°F)
    ISO 6722
    No visible degradation or delamination
    Low Temperature Resistance
    BH100-016A
    Pass -40°C (-40°F)
    Peel Resistance
    PSTC 101
    > 15 N/cm
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    BH100-003B
    No delamination or cracking
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

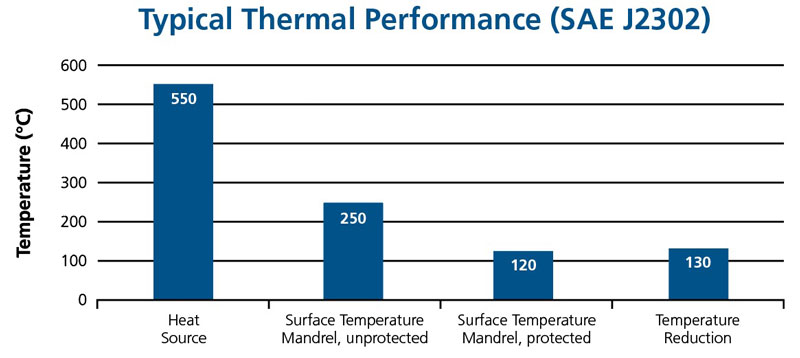

    Stacks Image 8172
