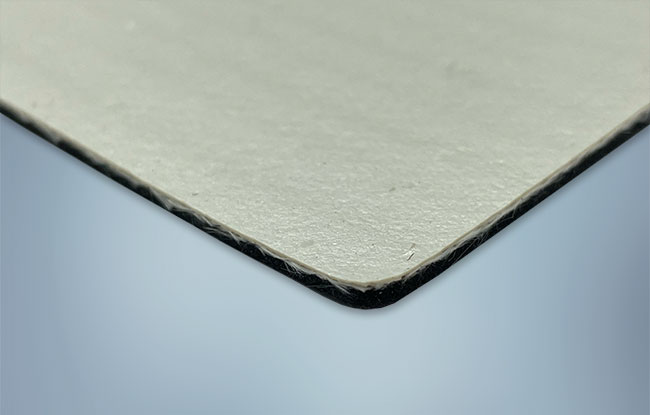

ENGINEERED CELL SPACERS
Thickness: 2.8mm
Material Type:
– Thermal Runaway: Protexx-Shield®
– Compression: PU Foam
Thermal Conductivity: 0.043
[W/(m*K)] at +23°C
Thermal Runaway Survival +800C x
10 min No Burn-through
Customization for:
– Polyurethane foam
– Anti-Thermal propagation properties

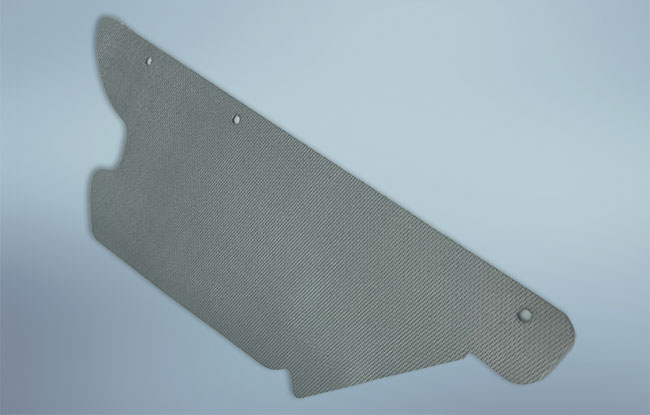

– Geometry
– Adhesive mounting capabilities
FUNCTIONS:
-
Product DescriptionEngineered cell spacers are critical components in the design and function of EV battery packs. These spacers are used to separate individual battery cells within a battery pack, serving multiple purposes that enhance the performance, safety, and longevity of the batteries.
Key Functions of Battery Cell Spacers
Thermal Management
One of the primary roles of cell spacers is to facilitate effective thermal management. By maintaining a gap between cells, spacers allow for better airflow and heat dissipation. This helps prevent overheating, which can degrade battery performance and safety.
Structural Support
Spacers provide structural integrity to the battery pack by holding the cells firmly in place. This prevents cells from moving or vibrating, which could cause mechanical damage or electrical short circuits.
Electrical Isolation
By separating the cells, spacers help prevent electrical short circuits that could occur if the cells were to come into direct contact with one another. This is crucial for maintaining the safety and reliability of the battery pack.
Mechanical Protection
Spacers can absorb shocks and vibrations that occur during vehicle operation, protecting the cells from physical damage. This is particularly important in automotive applications where the battery pack is subjected to varying levels of mechanical stress.
Enhanced Safety
In the event of a cell failure or thermal runaway, spacers can act as a barrier to contain the spread of fire or heat to adjacent cells, thereby enhancing the overall safety of the battery pack. -
Typical Applications

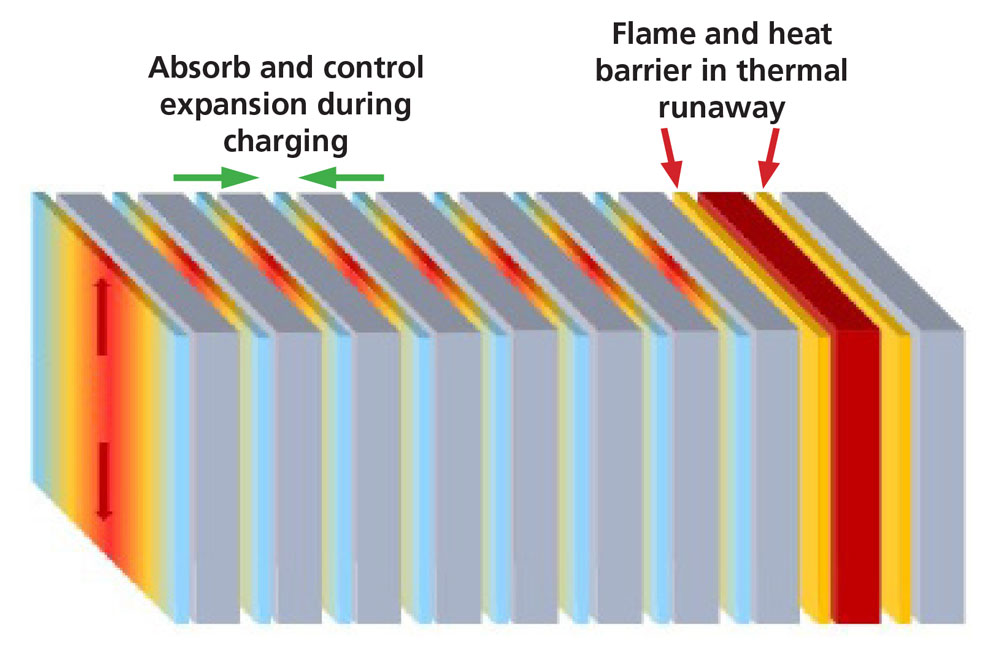

• Dual function compression and thermal runaway protection for:
– Prismatic cells
– Pouch cells -
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
This product is designed to customer specific application, geometry and performance requirements. Due to the nature of this custom product, please consult your local sales representative for more details.
-
Installation Tools
There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.
-
Product Testing

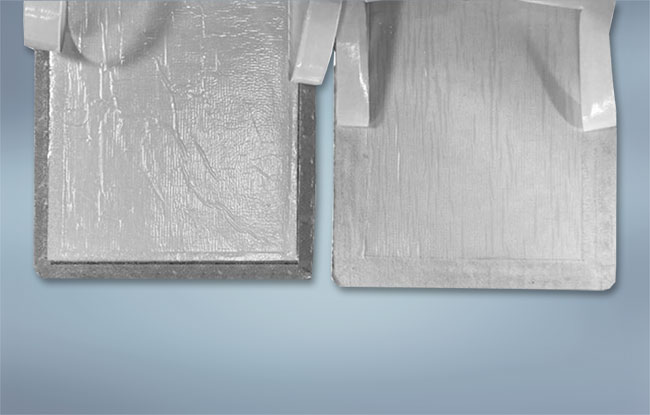

Thermal Runaway Results
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
CharacteristicResultThickness2.8 mmThermal Conductivity0.043 [W/(m*K)] at +23°CThermal Runaway Survival +800°C x 10minNo Burn ThroughThermal Runaway Protection +600°C x 10min> 350°C ProtectionCompression Force at 25% Strain0.0276 MPaCompression Force at 75% Strain0.4175 MPa*These properties are all able to be fine tuned based on customer requirement
