REFLECTSHIELD® 1435

Operating temperature up to +200°C (+392°F)

Excellent radiant heat protection

Adhesive backed for peel and stick applications

Easy installation for complex geometries

Available in custom designs

Fluid and chemical resistant

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectShield® 1435 is a woven fiberglass fabric with aluminum foil laminated to its outer surface and a pressure sensitive adhesive to its inner surface. This peel and stick laminate provides superior radiant heat protection for a variety of components including areas of complex geometry or difficult fixation.

    Utilizing an acrylic based adhesive system, ReflectShield 1435 provides excellent adhesion for a variety of substrates while maintaining performance during heat aging and fluid exposure.

    ReflectShield 1435 can be slit and sheeted to custom size or 2D die cut to accommodate complex shapes as well as is available with a variety of different backer paper materials and configuration options including tape tabs, cracked liner or kiss cut.
  • Typical Applications

    • Engine Covers
    • Clips and Connectors
    • Fuel and Brake Lines
    • Other Plastic or Metal Components

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum

    Inner Layer: Fiberglass multifilament with a pressure sensitive adhesive (PSA) backing

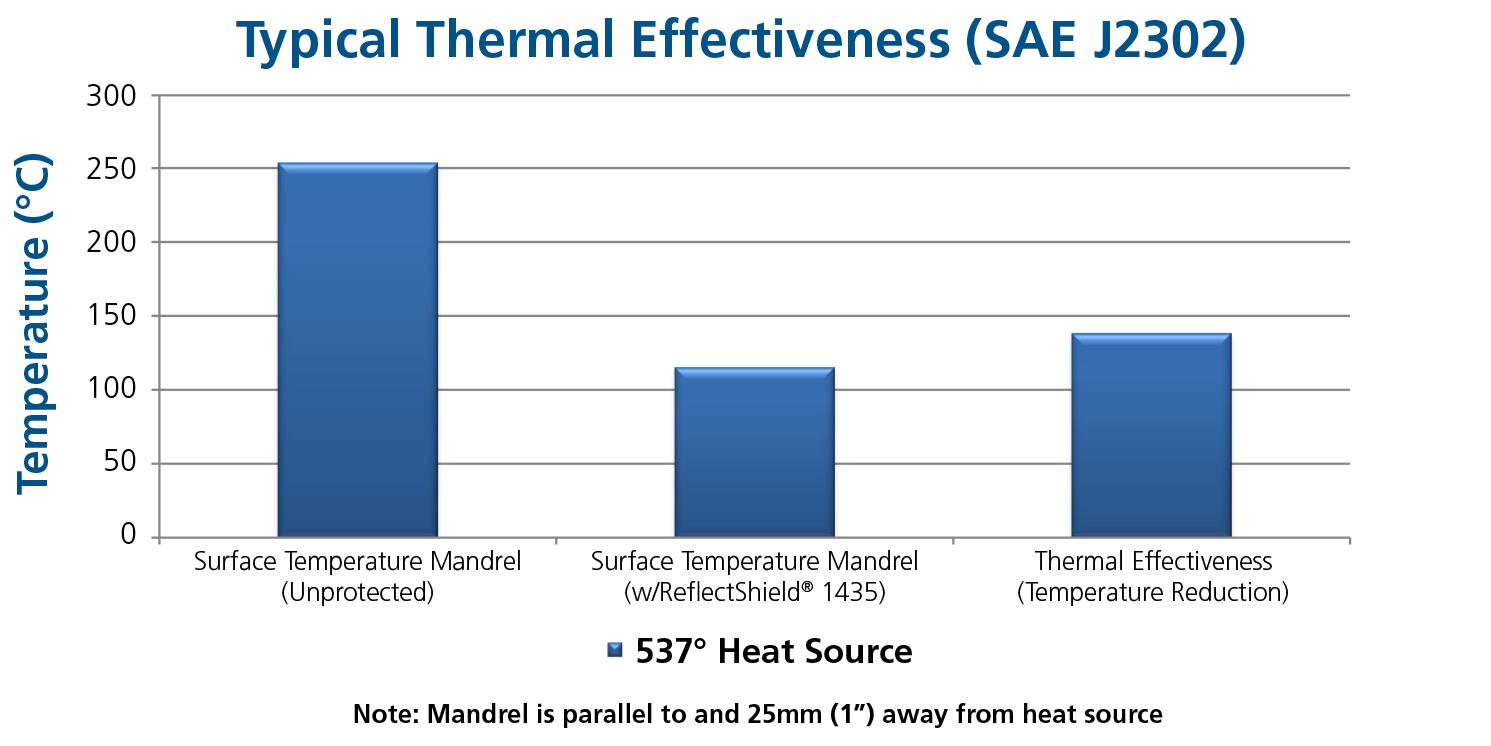

  • Product Testing

    Performance Data – ReflectShield® 1435

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    25mm above 537°C heat source for 6 hours
    No degradation or delamination
    Low Temperature Flexibility
    SAEJ2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    FMVSS 302
    Self extinguishing
    Pass
    Fluid Resistance
    SAEJ2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
