TEXTALU® 1202

Resists thermal convective soak of +300°C (+572°F)

Superior flame protection during exposure to +1000°C (+1832°F) x 10 minutes

Excellent thermal resistance

Up to 6kV dielectric strength

Flame suppression & endurance

EV thermal runaway protection

Expandable design for custom fit

Flexible, lightweight & low profile

Reduced end fray

Water tight and fluid resistant

FUNCTIONS:

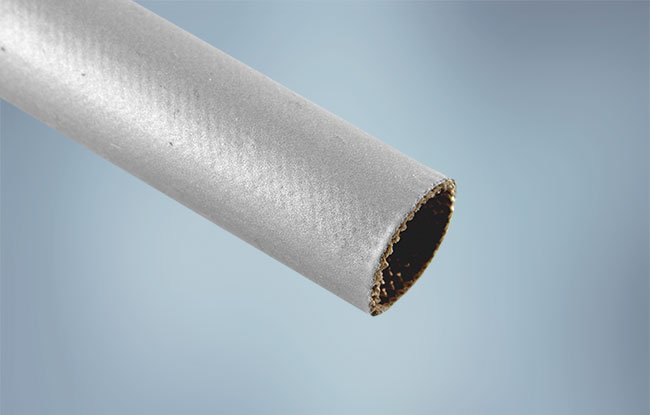

Stacks Image 6847
Open all Close all
  • Product Description
    Textalu® 1202 is a fiberglass braided textile with an innovative silicone outer coating designed to provide dielectric protection, flame suppression and thermal resistance in extreme environments.

    With broad performance capability, Textalu 1202 can be used for traditional high temperature thermal and dielectric insulation for wiring, fluid lines and cable assemblies as well as to protect busbars and other neighboring components from thermal runaway (extreme temperature & flame) associated with electric vehicle battery cell failure.

    Textalu 1202 utilizes an advanced compounded silicone to deliver dielectric strength, reduced thermal emissivity, and flame suppression. Additionally, the coating improves installation, fray resistance and creates a fluid barrier.
  • Typical Applications

    • Hose & Tubing Applications
    • Cable Assemblies
    • Wire Harnesses
    • Busbars
    • EV Battery Space

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5

    5

    7
    7

    7

    8
    8

    8

    9
    9

    9

    11
    10

    10

    12
    12

    12

    15
    15

    15

    18
    17

    17

    21
    18

    18

    22
    20

    20

    26
    22

    22

    28
    24

    24

    32
    28

    28

    40
  • Construction and Typical Product Characteristics
    Inner Layer: Fiberglass

    Outer Layer: Advanced silicone coating
  • Product Testing

    Performance Data – Textalu® 1202

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Thermal Soak
    240 hours at +260°C (+235°C rating)
    6 hours at +300°C
    Pass +235°C (+455°F)
    No visible degradation or loss
    of flexibility - Shrinkage < 10%
    Low Temperature Flexibility
    SAE J2192
    Pass -50°C (-58°F)
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing - Type B
    Dielectric
    QI-MCQ-21
    3-6kV based on sizes shown in Sizes / Availability tab
    Thermal Runaway
    SP Internal Test Method
    Resists 10 min x +1000°C Flame
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at 23°C, followed by a drying period of:
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.

    • Immersion for 48h at 70°C, followed by a drying period of:
      • 24h at 23°C: Urea of clean up Ad blue.

    • Immersion for 24h:
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
