FYREJACKET® HL

Operating temperature -60ºC to +125ºC (-76°F to +257°F)

Fire protection 4 min Utes at +830°C (+1526°F) according to IEC60331-1

Peak temperatures up to +260°C without sleeve opening

Flexibility to -60°C (-76°F)

EN45545-2

Abrasion resistance

Impact resistance

Electrical isolation 8kV

FUNCTION:

Stacks Image 6847

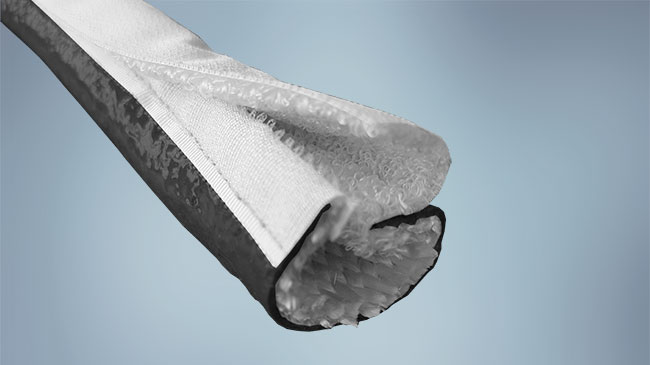

Stacks Image 6849
Open all Close all
  • Product Description
    FyreJacket® HL is an open thickwall braided fiberglass sleeving coated with a specially compounded, flame retardant silicone rubber. FyreJacket HL can be easily installed on cables and hoses and closes thanks to the textile hook and loop structure.

    FyreJacket HL offers an effective protection against sustained high temperatures, flames and molten metal splashes that can seriously damage electrical cables and hydraulic, gas and lubricant supply lines. Thanks to its unique construction, FyreJacket HL prevents the absorption of dust and water through the aperture.

    The construction of FyreJacket HL ensures fire protection up to +1100ºC (+2012°F) and provides thermal protection against internal and external hazards in a variety of industries.

    To facilitate installation, localize the protection and seal the ends, unsupported self-amalgamating tapes can be used. They provide a nice fit on the application, avoid water ingress from splashes and prevent the ends from fraying through aging on the application. Please contact us to determine the best color and width depending on your application.

    VIEW PRODUCT
  • Datasheet Downloads
  • Support Documentation

    There are no support documents available at this time. Please contact your sales representative or distribution team for further support.

  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Recommended Application Range
    Min Ø mm (in)
    Max Ø mm (in)
    Wall Thickness
    mm (in)
    Standard Packaging
    m (ft)
    FyreJacket HL 10-12
    5 (3/16")
    10 (3/8")
    3.6 (0.142)
    15 (49')
    FyreJacket HL 16-12
    10 (3/8”)
    16 (5/8”)
    3.6 (0.142)
    15 (49')
    FyreJacket HL 20-12
    16 (5/8”)
    20 (13/16”)
    3.6 (0.142)
    15 (49')
    FyreJacket HL 25-12
    20 (13/16”)
    25 (1”)
    3.6 (0.142)
    15 (49')
    FyreJacket HL 30-12
    25 (1”)
    30 (1-3/16”)
    3.6 (0.142)
    15 (49')
    FyreJacket HL 38-12
    30 (1-3/16”)
    38 (1-1/2”)
    3.6 (0.142)
    15 (49')
    FyreJacket HL 45-12
    38 (1-1/2”)
    45 (1-3/4”)
    3.6 (0.142)
    9 (30')
    FyreJacket HL 57-12
    45 (1-3/4”)
    57 (2-1/4”)
    3.6 (0.142)
    9 (30') TBC
    FyreJacket HL 67-12
    57 (2-1/4”)
    67 (2-5/8”)
    3.6 (0.142)
    9 (30') TBC
    FyreJacket HL 80-12
    75 (2-15/16”)
    80 (3-1/8”)
    3.6 (0.142)
    6 (20')
  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data – FyreJacket® HL

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    EN6059-302
    168 hours at +125°C (+257°F)
    168 hours at +260°C (500°F) with attachments
    Low Temperature Flexibility
    ASTM D-746
    -60°C (-76°F)
    Flammability
    ASTM D-350, Method B
    Does not burn
    Fire / Smoke / Toxicity
    EN45545-2
    R22: HL2 R23: HL2
    Contribution to fire, smoke
    and flaming droplets production
    TSI Tunnel /CPR Euroclass/NF EN 13823
    Very little contribution to fire, low smoke and no droplet
    Fluid Absorption
    EN6059-305, 6 hours
    on the closure system
    No absorption of water
    Break-down Voltage
    MCQ-021 based on EN6059-501
    8kV
    Impact Resistance
    CDC 34-04-165 based on D42 1235
    MBN LV312-3
    37 J
    Classified C
    Bending Endurance
    EN6059-402, 1000 cycles
    without additional attachment
    No opening, no cracks
    Vibration Endurance
    EN6059-406 Method A (ISO7137)
    Pass, no degradation
    to the sleeve or to the cables
    Fluid Resistance
    1 Hour soak in: Gasoline, Engine oil,
    Power Steer­ing fluid, Transmission fluid,
    Coolant, Battery acid.
    No cracking or degradation
    resulted from soak in any of
    the tested fluids.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
