CONVOSHIELD® AL

Operating temperature from
-40°C to +150°C
(-40°F to +302°F)

Reflects radiant heat away from protected component

Reduces component temperature

Enhances harness rigidity

Fluid resistant

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description
    ConvoShield® AL is a reflective convolute sleeve designed to provide thermal protection for components in radiant heat environments. Composed of a high temperature nylon 4,6 polymer base substrate and a highly reflective coating, ConvoShield AL provides protection for wires, cables and hoses in applications that have radiant heat source temperatures as high as +538ºC (+1000ºF).

    The reflective surface is extremely resistant to automotive fluids and may be classed as insulative against 12 volt automotive currents. Because of its unique blend of thermal and insulative properties, as well as its aesthetic appearance, it is ideal for applications such as battery cables and alternator wiring harnesses.
  • Typical Applications

    • Battery cables
    • Wiring systems
    • Electronic sensor control wiring
    • Critical harnesses exposed to radiant heat

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective coating

    Inner Layer: Nylon 46 (PA46) convolute
  • Sizes / Availability

    Standard Sizes

    Nominal Diameter (mm)
    Internal Diameter (mm)
    6
    7.40
    10
    10.55
    13
    13.15
    16
    16.40
    19
    19.50
    22
    22.30
    25
    25.80

    Availability


    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in tubular and slit form. Customization for optimal installation also available

    Available in custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Please consult your local sales representative for regional packaging details and standards.
  • Product Testing

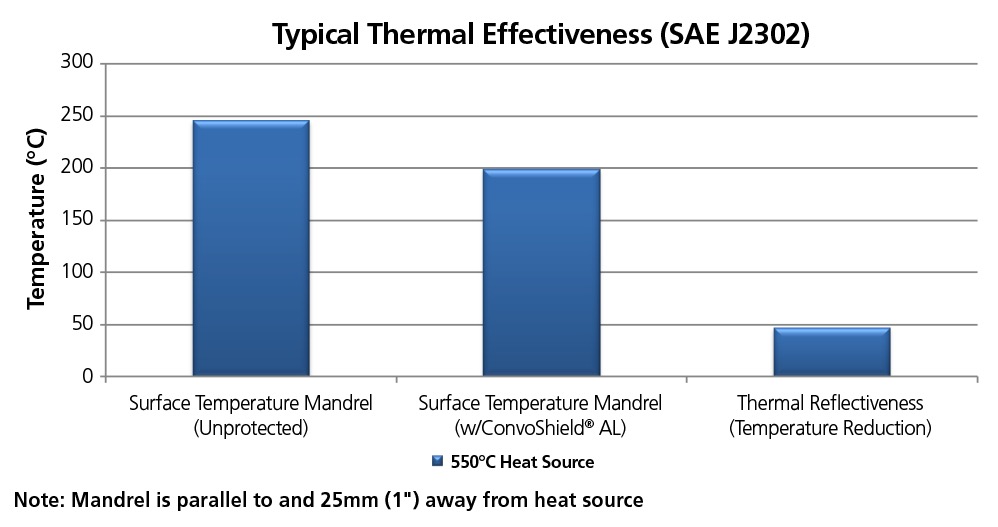

    Performance Data – ConvoShield® AL

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
