PROTEXX-SHIELD® 7000 / 7005 / 7010
Flame Protection of +1000°C (+1832°F) x 10minutes
Efficient level of thermal insulation (+500°C / +932°F)
Thin, flexible and easy to install
Customized designs for custom fit
Directly adheres to battery case
FUNCTIONS:
-

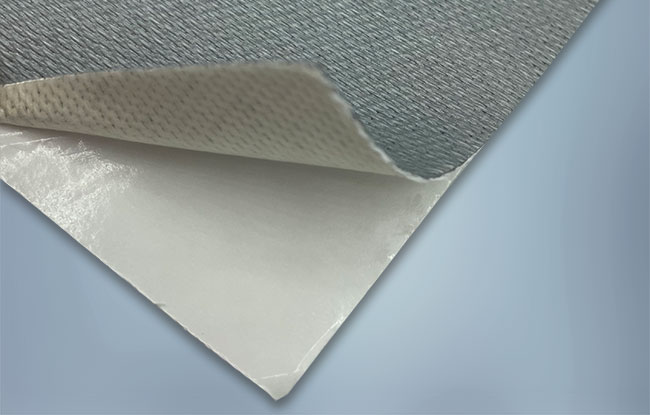

Product DescriptionProtexx-Shield® 7000 / 7005 / 7010 is a thin, flexible thermal and flame barrier specifically designed as anti-propagation protection within EV battery pack. Product is an engineered composite structure that provides functionality as a flame barrier and provides thermal insulation and electrical insulation. Protexx-Shield 7005 and 7010 is available with high temperature, pressure sensitive adhesive to allow for direct application onto a variety of surfaces.
Protexx-Shield 7000 is constructed of multiple layers of materials including a flame barrier layer with a specialty coating and a silica fabric structure for strength and insulation properties to limit propagation and failures due to thermal runaway event. This version requires mechanical attachment and has the highest level of flexibility.
Protexx-Shield 7005 takes the base of Protexx-Shield 7000 and applies a pressure sensitive adhesive for direct mounting functionality. This adhesive is designed to be compatible with metal surfaces.
Protexx-Shield 7010 takes the base of Protexx-Shield 7000 and applies a specialty pressure sensitive adhesive for direct mounting functionality. This premium performance adhesive can be recommended based on final application requirements. -
Typical Applications
• Limit propagation of thermal runaway
• EV Battery Case Liner
• EV Battery Pack:
– Module level protection
– Component level protection -
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
This product is designed to customer specific application, geometry and performance requirements. Due to the nature of this custom product, please consult your local sales representative for more details.
-
Installation Tools
There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.
-
Product Testing
Performance Data – Protexx-Shield® 7000 / 7005 / 7010
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultThermal RunawaySP Internal Test MethodResists 30 min x +1000°C (+1832°F) FlameThermal Insulation during +1000°C (+1832°F) x 10min flameSP Internal Test Method+500°C (+932°F) thermal insulation when mounted on steel plateDielectric Strength InitialIEC 60243-1>5kV/mmElectrical Insulation: Initial & Post Thermal Runaway1000V DC applied>4000 MΏThicknessASTM D17777000: 0.65mm
7005: 0.70mm without release liner
7010: 7005: 0.70mm without release linerDensityASTM D1777; D3776; D3776M1.95 g/cm3 tested without adhesiveAll numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
