PROTEXX-SHIELD® 2640
Flame Protection of +1000°C (+1832°F) x 10minutes
Low voltage wiring in EV battery pack
Efficient level of thermal insulation (+600°C / +1112°F)
Highly thin, flexible and easy to install
Customized designs for custom fit
Contamination free composite structure
FUNCTIONS:
-

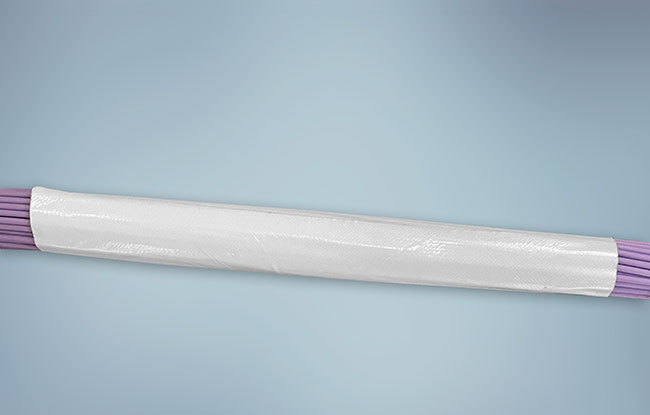

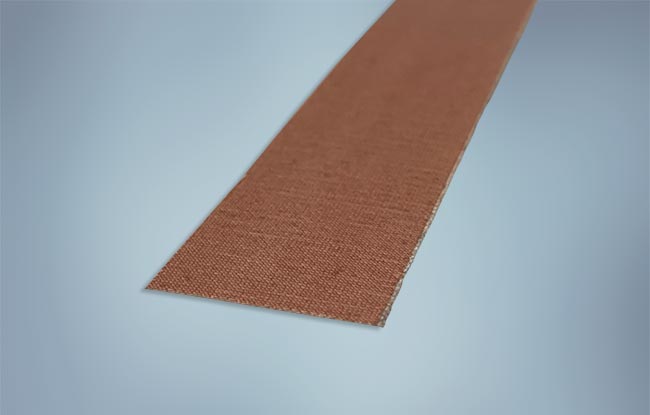

Product DescriptionProtexx-Shield® 2640 is a thin, flexible, highly efficient thermal and flame barrier specifically designed as anti-propagation protection within EV battery pack. Product is a highly engineered composite structure that provides functionality as a flame barrier and provides thermal insulation and electrical insulation. The composite structure allows for clean parts reducing any risk of contamination. Material is available with flame resistant pressure sensitive adhesive to allow for direct application onto a variety of surfaces.
Protexx-Shield 2640 is constructed of multiple layers of materials including an innovative flame barrier technology that activates during a thermal runaway event to stop flame penetration while additional layers provide insulation. This unique construction ensures excellent protection against potential thermal runaway event. -
Typical Applications
• BESS Wire Harnesses
• Server Rack Routing
• Thermal Runaway Protection -
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
This product is designed to customer specific application, geometry and performance requirements. Due to the nature of this custom product, please consult your local sales representative for more details.
-
Installation Tools
There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.
-
Product Testing
Performance Data – Protexx-Shield® 2640
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultThermal RunawaySP Internal Test MethodResists 10 min x +1000°C (+1832°F) FlameThermal Insulation during +1000°C (+1832°F) x 10min flameSP Internal Test Method+500°C (+932°F) thermal insulation when mounted on steel plateDielectric Strength InitialEN6059-50120kV/mmElectrical Insulation: Initial and Post Thermal Runaway1000V DC applied>4000 MΏThicknessASTM D17770.20mm without release linerDensityASTM D1777; D3776; D3776M1.4 g/cm3Thermal ConductivityASTM D1530-190.26 [W/m.k]All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
