ROUNDIT® EMI 2601

Operating temperature up to +150ºC (+302ºF)

Provides electromagnetic shielding

Self-wrapping design

Stable woven construction

FUNCTION:

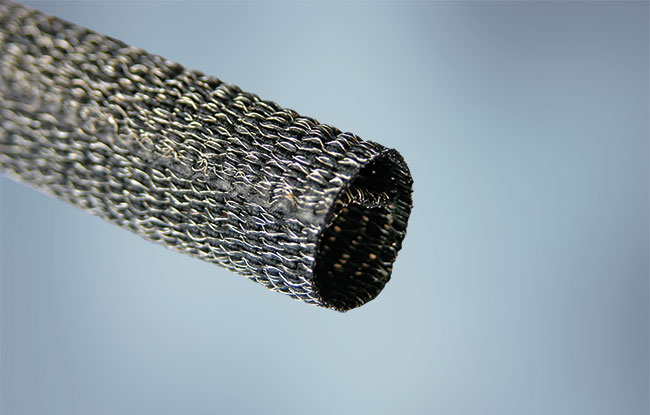

Stacks Image 6847
Open all Close all
  • Product Description
    ROUNDIT® EMI 2601 is a self-wrapping sleeve designed to provide >40dB of electromagnetic (EM) screening attenuation. Tinned copper wire is combined with polyester yarn to create a wrappable product that offers flexibility and consistent shielding protection. The product features an acrylic/silicone coating to prevent end fray and enable cold cutting for specific product lengths.

    Unlike foils and films, ROUNDIT EMI 2601 is durable and tear resistant, enabling it to provide long term protection. The product is engineered to reduce installation time, accommodate breakouts and can be installed over completed assemblies. ROUNDIT EMI 2601’s stable woven construction eliminates performance variances commonly exhibited in traditional wire braids when used over varying harness thicknesses or when exposed to the stresses of pressure washing and extended handling.


    Special versions available with conductive fill yarn and integrated copper drain wires for electrical grounding purposes.

  • Typical Applications

    • Copper Power Cables
    • Copper Data Cables
    • BESS Wire Harnesses
    • Server Rack Routing

  • Datasheet Downloads
  • Availability

    Availability

    ROUNDIT® EMI 2601 is available in a range of sizes and cut to your specification.
    Color is black. Please contact your sales representative for availability.

  • Installation Tools

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® EMI 2601

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°F) rating
    Pass +150ºC (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70ºC (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Shielding Effectiveness
    IEC 62153-4-3
    See graph below

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.

    Shielding Effectiveness of Sleeving
