REFLECTSHIELD® 1486

Operating temperature up to +175°C (+347°F)

Maintains a round profile against radiant heat

Fray resistant

Excellent thermal protection

Attractive appearance

Customizable for increased installation benefit

FUNCTIONS:

Stacks Image 6847
Stacks Image 8166
Stacks Image 8168
Stacks Image 8170
Open all Close all
  • Product Description
    ReflectShield® 1486 is an aluminized, high bulk sleeve designed to provide thermal protection in high temperature environments. The outer layer is composed of an aluminum and glass fabric with the inner layer being composed of non-woven polyester.

    ReflectShield 1486 maintains a round profile creating an air gap that maximizes the level of protection for sensors or connectors. ReflectShield 1486 is also available with a four or eight tine end cap that’s engineered to accommodate a range of convolute sizes while allowing flexibility in the installation process. ReflectShield 1486 is customizable (angle cuts, notches, slits, etc.) which provides additional installation benefits by maximizing the protected area along with helping to locate the product in complex applications.
  • Typical Applications

    • Sensors
    • Connectors

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum / Fiberglass

    Inner Layer: Polyester (PET) non-woven
  • Availability
    ReflectShield 1486 is available in a 4 different diameters: 25, 32, 38, and 56 mm and in a variety of configurations:

    • Straight

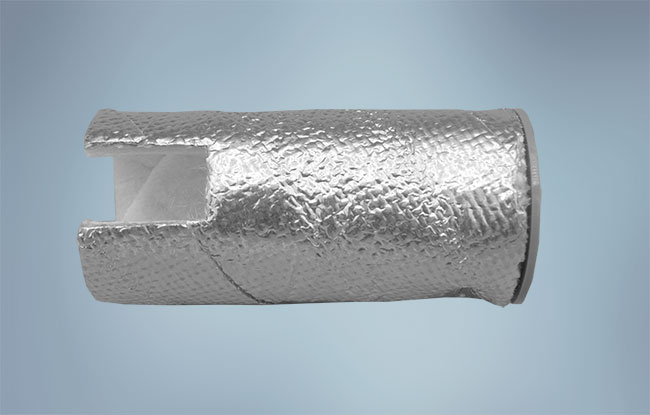

    • With a notch
    • With a slit
    • With an angle cut
    • With a hole
    • With a metallized end cap (M-Version)

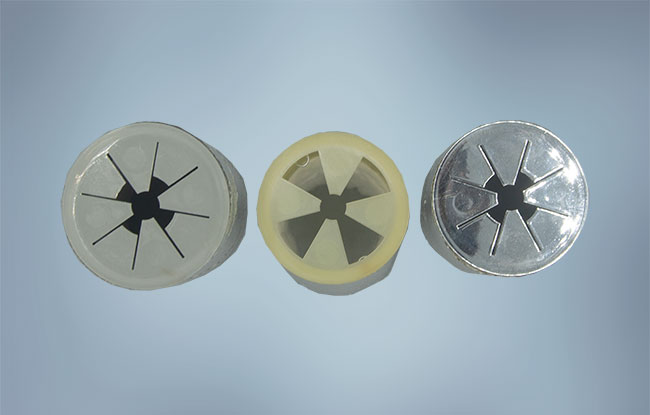

    Available with 2 different caps (4 or 8 tines). Product can be customized to meet your needs.     Color is aluminum (silver).
    Please contact your sales representative for availability.
  • Product Testing

    Performance Data – ReflectShield® 1486

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    168 hours at +175°C (+347°F)
    No degradation
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Flexibility
    BH100-016C
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
