TWISTTUBE® 2428

Operating temperature up to +150°C (+302°F)

Self-curling wrappable design

Excellent abrasion resistance

Flexible

Lightweight

Aesthetic solution

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

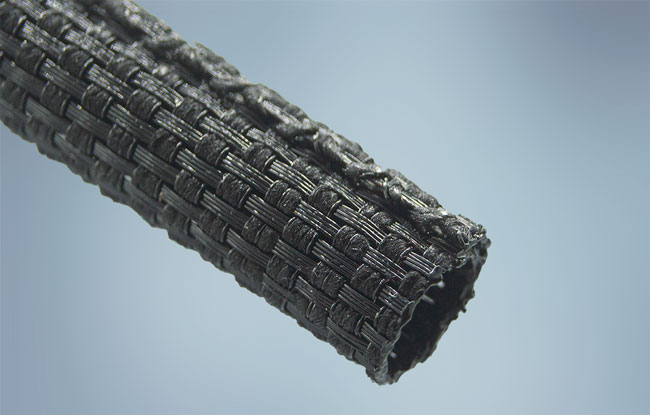

    TwistTube® 2428 is a wrappable sleeve designed to provide abrasion resistance and facilitate easy bundling of completed assemblies.

    Woven of both monofilament and multifilament polyester yarns, this flexible and lightweight product offers superior abrasion protection for wire harnesses, tube hose and cable assemblies as well as other components.

    The self curled circular profile with generous overlap enables fast installation, easily incorporates breakouts, and maintains its closed shape when bent or flexed.
  • Typical Applications

    • Body wiring harnesses
    • Instrument panel harnesses
    • Engine compartment harnesses
    • Modular wire harnesses
    • Tube, hose, and cable assemblies

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5

    1

    5
    8

    5

    8
    10

    8

    10
    13

    10

    13
    16

    13

    16
    19

    16

    19
    25

    19

    25
    29

    25

    29

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user.

    A reduced overlap could be acceptable in certain applications allowing for a larger max diameter harness. Please consult your local sales representative for recommendations and guidance.

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - TwistTube® 2428

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    SAE J2192
    Up to +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    FMVSS 302
    Self-extinguishing
    Pass
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
