ROUNDIT® 2000NX HT

Operating temperature from -70ºC to +260ºC (-94ºF to +500ºF)

ASD EN 6049-007

Excellent cut-through and abrasion resistance

Halogen-free

Self-wrapping design

Ideal for reworking components without disconnecting them

Lightweight construction

Tracer indicating the maximum operating diameter

Aesthetic solution

Water repellent

FUNCTION:

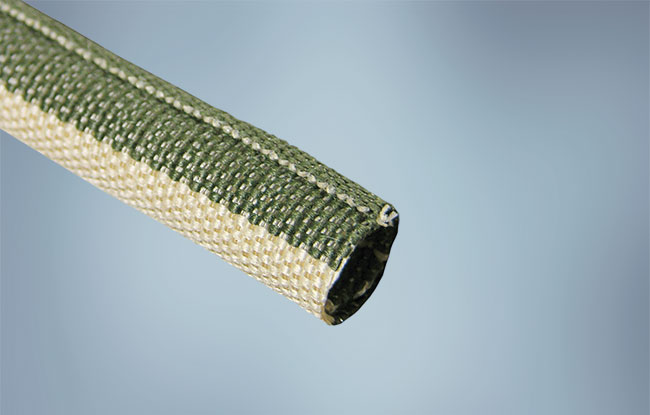

Stacks Image 6847
Open all Close all
  • Product Description

    ROUNDIT® 2000 NX HT is a self-wrapping sleeve manufactured from PEEK monofilaments and Nomex® multifilaments. It includes a water repellent treatment in order to prevent the absorption of condensation build-up caused by the extreme changes aircraft are subjected to. Designed for mechanical protection and maintenance of wire and cable bundles, its 100% covering ratio provides excellent cut-through and abrasion resistance.

    The self-wrapping design allows for quick and easy installation and removal of the product for assembly and maintenance. ROUNDIT 2000 NX HT also accommodates break cuts.

    The high temperature version is differentiated from the standard ROUNDIT 2000 NX by a wide ivory tracer on the outer side.

    Nomex is a registered trademark of E.I. DuPont de Nemours.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 NX HT 5-5

    1 (1/32")

    5 (3/16")

    20 (0.013)

    150 (492')
    ROUNDIT 2000 NX HT 8-5

    5 (3/16”)

    8 (5/16”)

    27 (0.018)

    100 (328’)
    ROUNDIT 2000 NX HT 13-5

    8 (5/16”)

    13 (1/2”)

    39 (0.026)

    50 (164’)
    ROUNDIT 2000 NX HT 19-5

    13 (1/2”)

    19 (3/4”)

    60 (0.040)

    25 (82’)
    ROUNDIT 2000 NX HT 25-5

    19 (3/4”)

    25 (1”)

    73 (0.049)

    25 (82’)
    ROUNDIT 2000 NX HT 32-5

    25 (1")

    32 (1-1/4”)

    93 (0.062)

    25 (82’)
    ROUNDIT 2000 NX HT 40-5

    32 (1-1/4”)

    40 (1-1/2”)

    116 (0.078)

    25 (82’)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000 NX HT
    5
    5 (green)
    150m
  • Installation Tools

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 NX HT

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    -70ºC (-94°F) to +260ºC (500°F)
    Classification Flammability/
    Smoke Density/Toxicity
    Thermal endurance & shocks
    Conforms
    Water Repellency
    EN 6059 Part 305
    Pass
    MECHANICAL
    Abrasion Resistance
    EN 6059 Part 403
    Pass
    Dynamic Cut-through
    EN 6059 Part 405
    Pass
    Vibration
    EN 6059 Part 406
    No cable abrasion
    ELECTRICAL
    Voltage Proof Test
    EN 6059 Part 501
    1.5 kV dielectric strength
    Resistance to Electrical Arcs
    EN 6059 Part 502
    Details on cables and voltage available upon request
    CHEMICAL
    Fluid Resistance
    – Jet Fuel: JP-5 (Otan 144)
    – Hydraulic Fluid (Skydrol 500B4)
    – Mineral Oil (MIL-L-7870A)
    – Synthetic Oil (MIL-L-23699)
    – Cleaning Fluids (MIL-L-87936)
    – De-icing Fluid (MIL-A-8243)
    EN 6059 Part 303

    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Mold Growth
    prEN 6059 Part 306
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
