PROTEXX-SHIELD® 4300
Multifunction, via multifunctional layer design approach, cell to cell protection in lithium ion battery packs
Protects during thermal runaway condition to limit propagation
Effectively manages cell swelling force during normal charging and discharging operation
Maintains uniform pressure on face of cell where pad is located
Acts as electrical insulative barrier between cells
Customized designs for each application requirement
Contamination free structure
Integrated labeling available
FUNCTIONS:
-

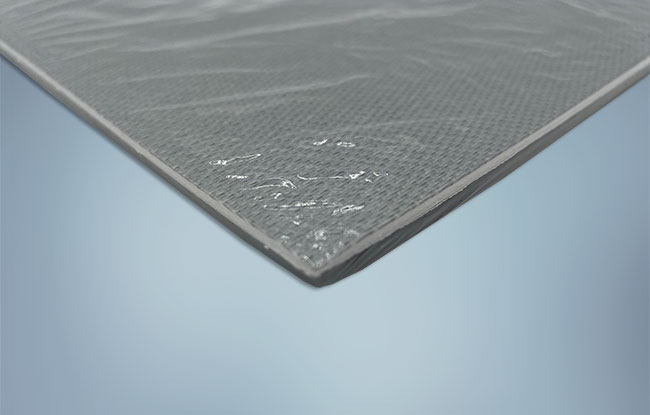

Product DescriptionProtexx-Shield® 4300 is a fully engineered solution for muli-function protection at battery cell level in EV battery pack. Product features include highly efficient thermal barrier specifically designed as anti-propagation protection within EV battery pack; a highly engineered thermal insulation barrier partnered with customized compression control pad. Product is a fully engineered composite that provides flame barrier, thermal insulation, cell swelling management and electrical insulation for life of the battery pack. In case of thermal runaway condition product acts as an anti-progation protector. The encapsulation of this composite structure allows for clean parts reducing any risk of contamination.
Protexx-Shield 4300 is constructed of three functional layers to delivery required end application performance with full encapsulation for cleanliness. These layers include coated high temperature mineral fiber thermal barrier, a high temperature mineral fiber themal insualtor, a highly engineered polyurthane foam and a thermplastic encapsulation film. Each layer of the composite structure is fine tuned to end application requirements.
Protexx-Shield 4300 is available in customized geometries and can be provided with customized labeling to provide part traceability. -
Typical Applications
• Cell to Cell protection for normal operation and thermal runaway condition within EV Battery Pack:
– Between prismatic cells
– Between prismatic cell and module
– Surface of pouch cells -
Datasheet Downloads
-
Support Documentation
-
Sizes / Availability
This product is designed to customer specific application, geometry and performance requirements. Due to the nature of this custom product, please consult your local sales representative for more details.
-
Installation Tools
There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.
-
Product Testing
Performance Data – Protexx-Shield® 4300
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultDensityASTM D1777; D3776; D3776M0.385 k=g/cm3 based on 3.8mm thicknessDielectric StrengthASTM D1777; D3776; D3776M>5kV DC breakthrough strengthThermal ConductivityGHFM0.059 [W/m*K] at 25°C
0.10 [W/m*K] at 800°C, measured at 0%
compression on 3.8mm thickness productAll numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
