C-GROUND™ 125

Operating temperature from
-40°C to +125°C
(-40°F to +257°F)

Fast positioning over grounding area

No end fray

Accommodates various diameters in round or oval position

Tracer indicating maximum operating diameter

Ensures high level of conductivity between grouped cables without applying heat

UL94V0 raw materials

Cu/Sn wires (EN13602)

Zero halogen

EN45545-2

FUNCTION:

Stacks Image 6847
Stacks Image 7260
Stacks Image 7262
Stacks Image 7264
Open all Close all
  • Product Description

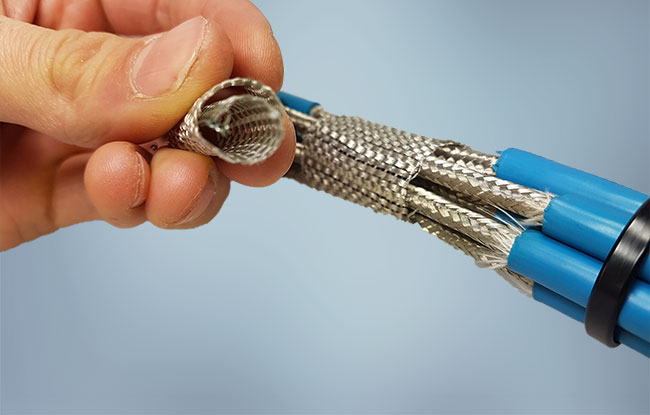

    C-Ground™ SW 125 is a wrap-around grounding solution allowing high conductivity between shielded wires. C-Ground™ SW 125 is manufactured from UL 94 V0 rated PPS monofilaments and tin plated copper wires according to EN13602.

    The self-wrapping feature of C-Ground™ SW 125 allows for quick and easy installation and removal of the product for assembly and maintenance.

    Delivered in cut pieces of 35 mm ready for installation, the design offers innovative solutions to group shielded wires in round or oval configuration and allows to set a fast link through a bonding lead to a nearby ground point.

    The stable construction guarantees high level of conductivity regardless of the diameter on which it is installed within the recommended application range.

    As an additional benefit, C-Ground™ SW 125 enables users to stock a limited range of sizes to cover a wide range of shielded wire diameters.

    The ease of installation offered by self-wrappable design saves labor and provides cost-effective, long-term efficient grounding making the C-Ground SW 125 an ideal solution to connect cables shield to the ground.

    C-Ground 125 also available in a flat configuration called C-Ground™ Flat 125. This configuration allows to ground any size of bundle by cutting the necessary length and wrapping around the bundle with one and a half turn.
  • Datasheet Downloads
  • Standard Sizes

    Product Specifications

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Commercial Part Number
    Nominal Size*
    (mm)
    Recommended Application Range
    mm (in)
    Min Ø
    Max Ø
    Cross Section
    (mm    2)
    Max Mass
    g/m
    Number of Pieces
    Per Carton
    Number of Pieces
    Per Kit
    Number of Kits
    Per Carton
    C-Ground SW 125 8-8/-
    8
    5 (3/16")
    8 (5/16")
    3.5
    1.4
    600
    20
    30
    C-Ground SW 125 13-8/-
    13
    8 (5/16")
    13 (1/2")
    8.9
    1.9
    450
    15
    30
    C-Ground SW 125 19-8/-
    19
    13 (1/2")
    19 (3/4")
    10.6
    2.3
    300
    10
    30
    C-Ground SW 125 25-8/-
    25
    19 (3/4")
    25 (1")
    11.9
    2.8
    150
    5
    30
    C-Ground SW 125 32-8/-
    32
    25 (1")
    32 (1-1/4")
    8.9
    3.7
    150
    5
    30
    C-Ground SW 125 38-8/-
    38
    32 (1-1/4")
    38 (1-1/2")
    10.6
    4.2
    150
    5
    30
    C-Ground SW 125 45-8/-
    45
    38 (1-1/2")
    45 (1-3/4")
    11.9
    4.9
    150
    5
    30

    *Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Commercial Part Number
    Nominal Size*
    (mm)
    Cross Section
    (mm    2)
    Max Mass
    g/m
    Number of Pieces
    Per Spool
    C-Ground Flat 125 50-8
    50
    3.5
    1.4
    150

    Installation & Use

  • Product Testing

    Performance Data - C-Ground™ 125

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    -40ºC to +125ºC (-40°F to +257°F)
    Fire / Smoke / Toxicity
    UL 94
    DIN 5510 §2 & 54837
    EN 45545-2
    ASTM E 662 – ASTM E 162
    SMP 800-C – BSS 7239
    Raw material classified V0
    S4, SR2, ST2
    R22 HL3 R23 HL3
    Pass
    Pass
    CHEMICAL
    Fluid Resistance
    – Hydraulic Fluids (NATO.0.156)
    EN 6059-303
    Immersion for 24hrs at +70°C
    D47 1924
    No visible degradation after being exposed
    Salt Spray Resistance
    EN2591-307- 96 hours
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
