NYLOGARD® 2452

Operating temperature up to +125°C (+257°F)

Superior abrasion resistance

Excellent cut-through resistance

High density tubular construction

Custom printing available

FUNCTIONS:

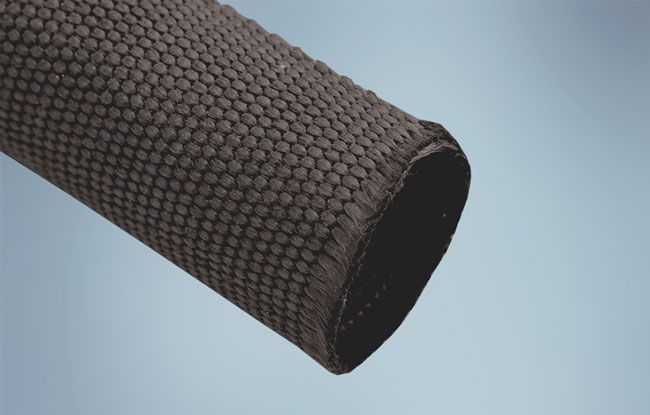

Stacks Image 8083
Open all Close all
  • Product Description
    NyloGard® 2452 is a highly durable, tightly woven sleeve constructed from high denier nylon yarns. NyloGard 2452 provides superior abrasion and cut-through protection for hoses, cables and wires for extreme applications and in rugged environments.

    NyloGard 2452’s dense construction provides maximum coverage. These properties extend the service life of the protected component and offer a cost savings associated with decreased component replacements.
  • Typical Applications

    • Wire Harnesses
    • Tube, Hose & Cable Assemblies
    • Fluid Transport Lines
    • High Voltage Applications

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Yarn: Nylon 6 (PA6) multifilament

    Fill Yarn: Nylon 6 (PA6) multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    NyloGard 2452 8-C
    8
    NyloGard 2452 11-C
    11
    NyloGard 2452 13-C
    13
    NyloGard 2452 16-C
    16
    NyloGard 2452 19-C
    19
    NyloGard 2452 23-C
    23
    NyloGard 2452 25-C
    25
    NyloGard 2452 27-C
    27
    NyloGard 2452 32-C
    32
    NyloGard 2452 38-C
    38
    NyloGard 2452 45-C
    45
    NyloGard 2452 51-C
    51
    NyloGard 2452 57-C
    57
    NyloGard 2452 64-C
    64
    NyloGard 2452 70-C
    70
    NyloGard 2452 76-C
    76
    C = Color Code: Black - 0

    * Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
  • Product Testing

    Performance Data – NyloGard® 2452

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +125°C (+257°F)
    Low Temperature Flexibility
    SAEJ2192
    Pass -70°C (-94°F)
    Fluid Resistance
    SAE J2192
    Pass
    Dynamic Cut-Through Resistance
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    1,950 N avg
    1,500 N avg
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
