FLEXGUARD® 2130 / 2130LD

Operating temperature up to +150°C (+302°F)

Excellent abrasion resistance

Highly flexible and easy to install

Expandable design for custom fit

Lightweight and breathable textile design

Available with fray resistant end-treatment for cut lengths

FUNCTIONS:

Stacks Image 8083
Stacks Image 6847
Open all Close all
  • Product Description
    FlexGuard® 2130 is a lightweight and flexible braided sleeve designed to provide mechanical protection for most common automotive applications. Constructed of PA (polyamide) monofilament guard strands and PET (polyethylene terephthalate) support strands, this dual-monofilament blend provides an excellent balance of abrasion protection, temperature resistance, and installability.

    For severe applications, FlexGuard 2130 utilizes a tight construction to provide superior mechanical protection, effectively extending the service life of hose and tubing applications as well as wire harnesses and other critical components.

    With the ability to expand many times larger than its diameter, FlexGuard 2130 is easy to install, can adapt to a wide range of application sizes and profiles, as well as accommodate large pre-installed connectors. The breathable textile construction allows fluids drainage and heat dissipation as well as prevents condensation. as well as prevents condensation.

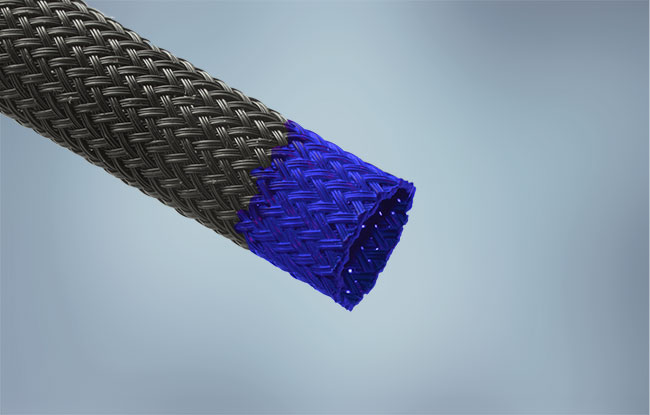

    Also available in a dipped end version (FlexGuard 2130LD) designed specifically for fray resistance. Dipped ends are only visible under ultraviolet (UV) light.
    To facilitate installation and optimize fit for standard tube hose and cable sizes, multiple variations of FlexGuard 2130 have been created (Examples: FG2130X, FG2130Y, FG2130Z). Please contact your local sales rep to see if one of these products is more suitable for your application.
  • Typical Applications

    • Hose & Tubing Applications
    • Cable Assemblies
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics

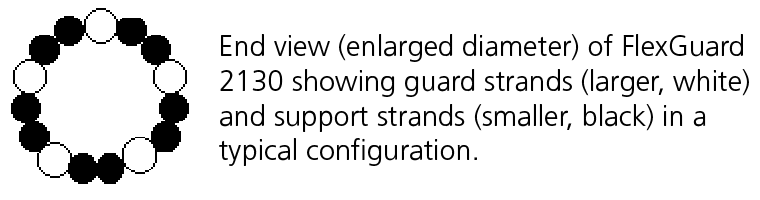

    Guard Strands: PA (polyamide) monofilament (Shown in white)

    Support Strands: PET (polyethylene terephthalate) monofilament (Shown in black)
  • Sizes / Availability

    Standard Sizes

    Nominal Diameter (mm)
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    6
    3
    7
    8
    6
    10
    10
    8
    13
    13
    7
    17
    16
    9
    22
    19
    16
    25
    25
    19
    32
    32
    25
    43
    35
    30
    50
    51
    38
    64
    Colors: Black | Natural | Yellow | Red | Gray | Black with White tracer

    * Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Max and Min values above are for guidance only. There may be multiple variations of this braid designed to facilitate installation and optimize fit. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
  • Product Testing

    Performance Data – FlexGuard® 2130 / 2130LD

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
