THERMSHIELD™ 1231

Working temperature from -40°C to +750°C (-40°F to +1382°F)

Excellent Thermal Containment

Flexible

Highly customizable design

No tooling required

FUNCTION:

Stacks Image 6847
Stacks Image 8958
Open all Close all
  • Product Description

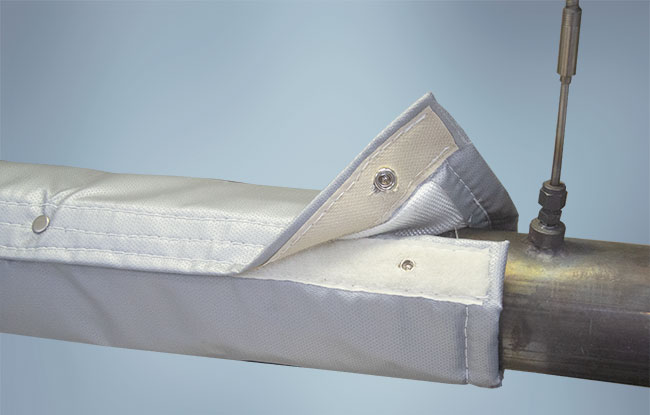

    ThermShield™ 1231 is a multi layer thickwall wrappable sleeving developed for insulation of high temperature exhaust systems. Mainly used in engine compartment for high temperature control such as EGR, manifold and turbo, also in exhaust system to improve gas emission such as SCR, PDF and EGP.

    Composed of 3 different layers, ThermShield 1231 is designed with silicone coating fabric on the outside, a fiberglass non-woven as intermediate layer and a high silica fabric on the inside gathered through cutting, folding and sewing manufacturing process. Thickness for the 3 layer structure goes from 5mm to 12mm depending on the thermal application requirements.

    Thermshield 1231 can withstand temperatures up to 750ºC. This high degree of insulation provided by ThermShield 1231 enables exhaust gas to maintain temperature as it moves through the exhaust system. Maintenance of exhaust gas temperature is important in order to ensure complete conversion of exhaust gas and particulates. Moreover it protects from heat surrounding engine parts as sensors, wire harnesses, plastic parts or electrical units.

    With a highly customizable design, ThermShield 1231 can be tailored to increase durability, accommodate contour, brackets and have integrated fixation such as clips or snaps.
  • Typical Applications

    • Truck SCR/EGP/DPF
    • Exhaust Pipe/EGR
    • Engine manifold
    • Other Industry Applications

  • Datasheet Downloads
  • Availability

    Availability

    ThermShield 1231 is a highly customizable product and is available in various designs to meet specific application requirements.

    Please contact your sales representative for availability.
  • Product Testing

    Performance Data - ThermShield™ 1231

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Working Temperature
    Up to + 750°C (+1382°F)
    Flammability
    SAE J369
    Self-extinguishing
    Thermal Containment
    BH100-509 Modified
    Pending
    Thermal Insulation
    BH100-509 Modified
    Pending
    Heat Aging: 240hrs at +675°C
    ISO 6722
    Pending
    Fluid Resistance
    BH100-003
    No degradation
    Stone Impingement
    SAE J400
    Pending

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
